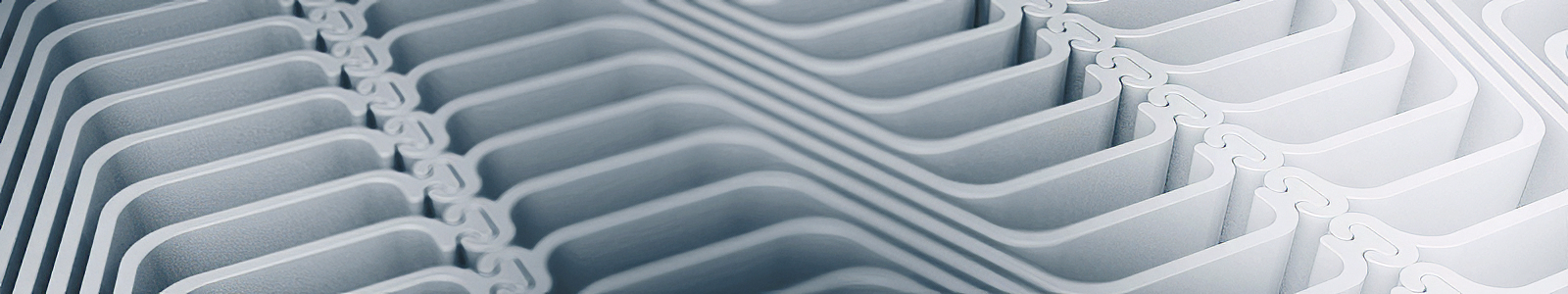

ShoreGuard® vinyl sheet pile provides a cost-effective and sustainable building material for seawalls and other sheet piling structures that are installed easier, resulting in shorter lead times and longer service-life over traditional materials, such as wood, concrete, or steel. The patented I-Beam Lock™ feature enforces panels with greater strength and a tighter seal for a more reliable connection.

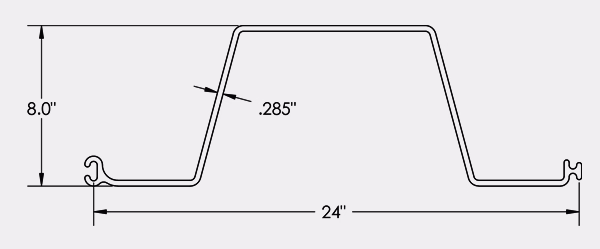

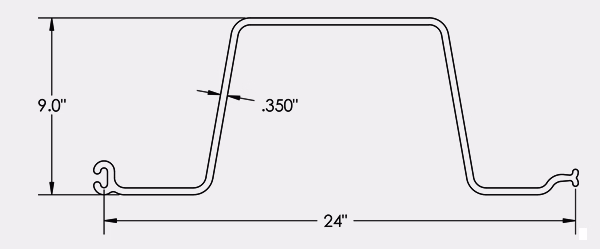

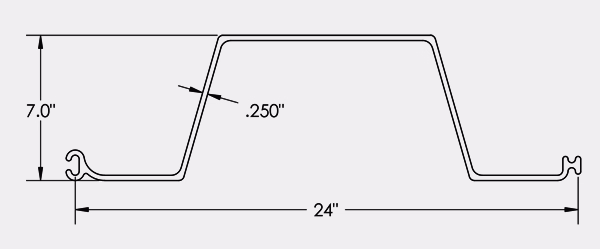

Corrugated Box Profile™ Sheet Piling
The ShoreGuard® corrugated Box Profile™ sheet piling profile was an early innovation and remains the most popular in civil engineering applications. ShoreGuard corrugated panels provide erosion protection and a clean, environmentally friendly solution for a variety of commercial and residential applications.

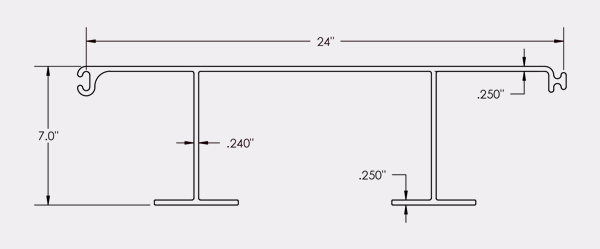

Flat Panel™ Sheet Piling
Flat Panel™ is a flat-front sheet pile profile for seawalls, retaining walls, flood protection and water control. This option provides an attractive alternative to corrugated sheet piling. Anchored, cantilevered or geo-grid supported walls can be designed using this advanced profile.
Meets ASTM D8427-21
Meets USACE EM 1110-2-2502
Broadest residential and commercial product offering in the industry
Made from over 90% recycled material and is 100% recyclable
Impervious to deterioration from weather, corrosion, and marine borers
ShoreGuard’s 50-year warranty is backed by CMI, the industry leader for over 30 years
